RS9113 Ultra-low-power Wi-Fi NCP Modules

RS9113 Wi-Fi NCP Modules

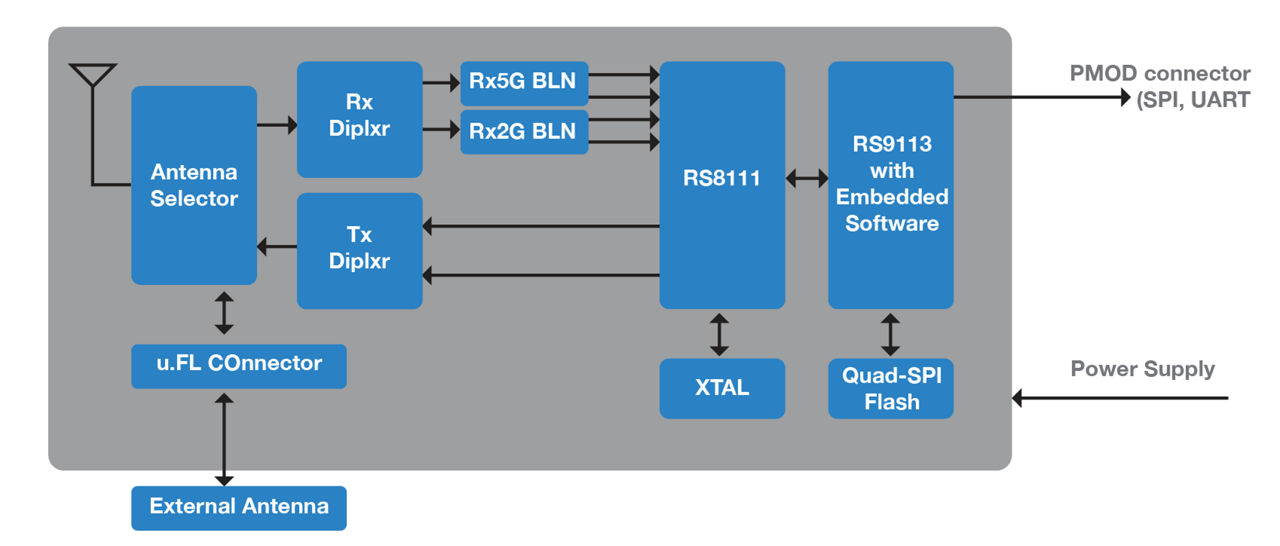

The RS9113 FIPS 140-2 Level 1 certified Wi-Fi modules is based on Silicon Labs' RS9113 ultra-low-power Convergence SoC. These Wi-Fi modules offer dual-band 1x1 802.11n. They are high performance, long-range and ultra-low-power Wi-Fi modules and include a multi-threaded MAC processor called ThreadArch®, digital and analog peripheral interfaces, baseband digital signal processor, calibration OTP memory, dual-band RF transceiver, dual-band high-power amplifiers, baluns, diplexers, diversity switch and Quad-SPI flash.

The module's embedded firmware includes the WLAN protocol stack along with WPA/WPA2-PSK and WPA/WPA2-Enterprise (EAP-TLS, EAP-TTLS, EAP-PEAP) and a feature-rich TCP/IP stack thus providing a fully-integrated solution for secure embedded low-end wireless applications. These Wi-Fi modules can be connected to 8/16/32-bit host processors through SPI, UART, USB and USB-CDC interfaces.

The modules are available in a small footprint form factor with low BoM requirements.

RS9113 Module Common Specs

WLAN

Compliant to single-spatial steam IEEE 802.11 a/b/g/n with dual band (2.4 and 5 GHz) support
Support for 20 MHz channel bandwidth
Transmit power up to +18 dBm with integrated PA
Receive sensitivity of -97 dBm.

Software/Firmware

WLAN stack embedded in the device
Supports WPA/WPA2-PSK, WPA/WPA2-Enterprise (EAP-TLS, EAP-TTLS, EAP-PEAP)
TCP/IP stack embedded in the device – includes:
- IPv4 and IPv6
- DHCP Server/Client
- HTTP Server/Client
- Static and Dynamic Webpages with JSON Objects (for HTML Server)
- ICMP
- Websockets
- DNS Client
- IGMP
- SNMP

FIPS

*FIPS 140-2 Level 1 Certification for modules with and without antenna
FIPS Approved and non-FIPS Approved modes of operation
FIPS Approved Algorithms
- AES 128-bit in CBC mode Encrypt/Decrypt key wrapping
- AES 256-bit in CBC mode Encrypt/Decrypt key wrapping
- AES CCM
- AES-128 CMAC
- SHA-1, SHA-256
- HMAC-SHA1, HMAC-SHA256
- RSA PKCS#5 v1.5 with 2048-bit key and SHA-256 for Digital Signature Generation/Verification
- SP800-90 DRBG HASH_DRBG
- SP800-108 KDF
- CVL: SP800-135 TLS v1.0 KDF
Non-approved Algorithms allowed in FIPS mode
- Hardware non-deterministic random number generator
- Diffie Hellman
- RSA
Non-approved Algorithms for non-FIPS mode
- RC4
- DES
- MD4
- MD5
Support for Power-up tests like Cryptographic Algorithm tests, Firmware/Bootloader integrity tests, Critical functions tests
Support for Conditional tests like Firmware load test, Manual key entry test and Continuous random number generator test

General

FCC, IC, ETSI/CE Certified
SPI, UART, USB, USB-CDC host interfaces
Wireless firmware upgrade
Options for Single supply of 3.0 to 3.6 V operation or multiple supplies for power saving
Operating temperature range:
-40 ºC to +85 ºC
