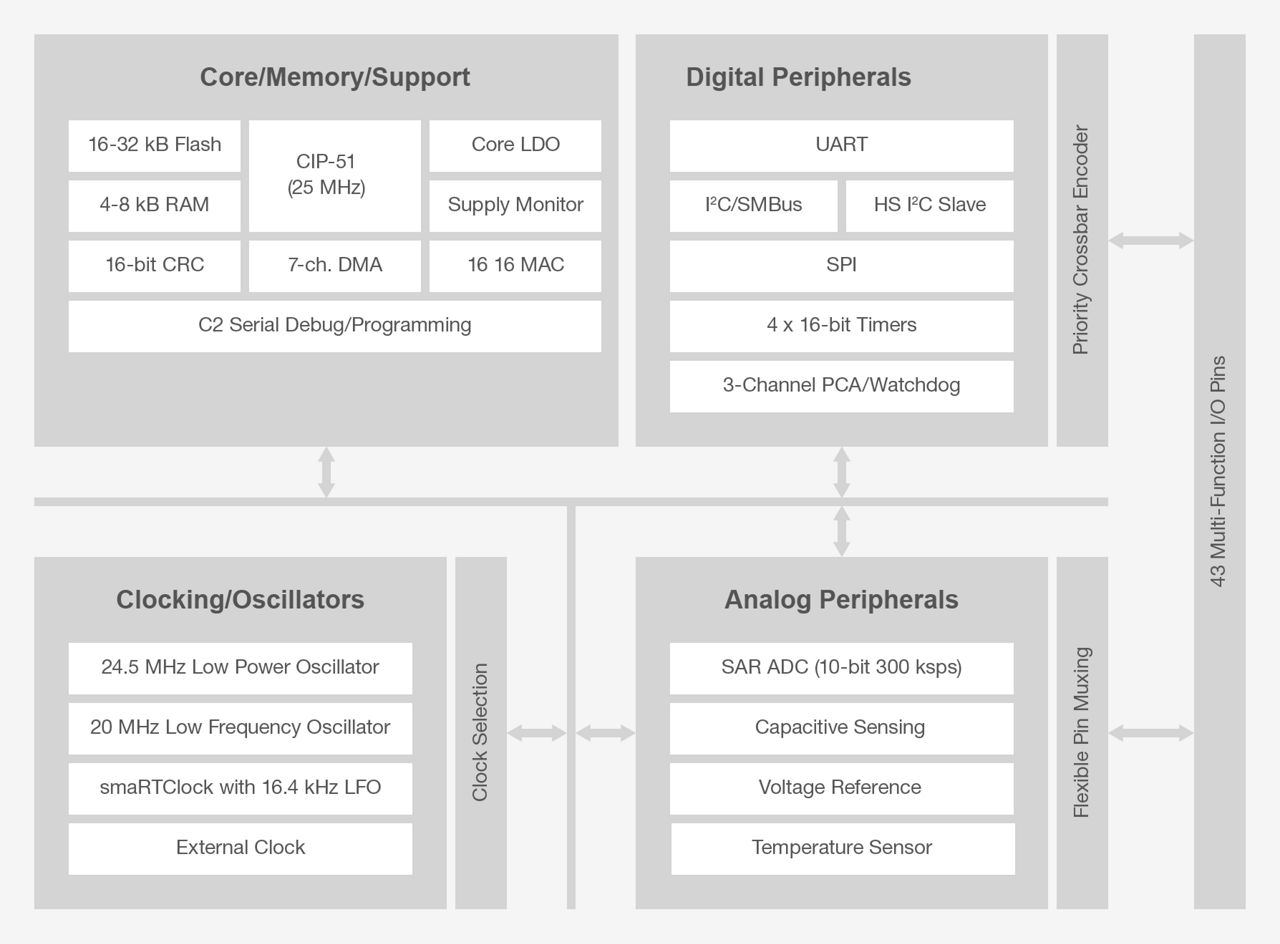

C8051F97x Common Specs
- High-speed pipelined 8051-compatible microcontroller core (up to 25 MIPS)
- Industry’s lowest active and sleep currents
- 200 µA/MHz active mode
- 55 nA sleep mode with brown-out protection
- 280 nA sleep mode with internal oscillator
- 43 input charge timing capacitance to digital converter
- 12-bit 75 ksps single-ended ADC
- Precision calibrated 24.5 MHz internal oscillator
- SmaRTClock oscillator
- Up to 32 kB of on-chip Flash memory
- Up to 8 kB of on-chip RAM
- Implemented, SMBus I2C, UART, SPI, and High-Speed I2C Slave serial interfaces
- Four general-purpose 16-bit timers
- Programmable Counter/Timer Array (PCA)
- On-chip internal voltage reference
- On-chip watchdog timer
- On-chip power-on reset and supply monitor
- Up to 43 general purpose I/O
- In-system, full-speed, non-intrusive debug interface (on-chip)
- One-cycle 16 x 16 Multiply and Accumulate module
- 7 channel Direct Memory Access (DMA) module
Find the Right C8051F97x Device
Select Columns
Part Number | MCU Core | MHz | Flash (kB) | RAM (kB) | Dig I/O Pins | 5 Volt Tolerant | ADC 1 | USB | Temp Sensor | Timers (16-bit) | PCA Channels | ADC 2 | DAC | Comparators | UART | SPI | I2C | HS I2C Slave | I2S | EMIF | CAN | LIN | AES | AEC-Q100 | Vdd (min) | Vdd (max) | Package Type | Package Size (mm) | Internal Osc. | VREF | Debug Interface | Other |
---|
