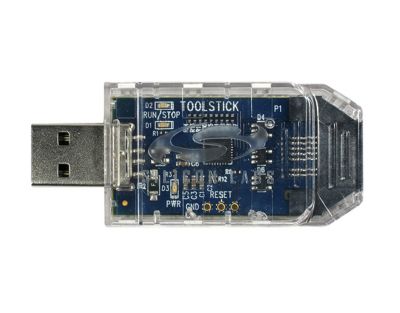

TOOLSTICKBA
MSRP $24.33
MSRP $24.33
OVERVIEW
GETTING STARTED
Step 1: Download 8-bit Microcontroller Studio
These tools help develop, download, and debug firmware to the 8051/EFM8 8-bit MCU devices. Now includes an unlimited Keil® PK51 Professional Developer's Kit!
TECH DOCS
SOFTWARE & TOOLS
8-bit 8051 Microcontroller Studio
Development Platform
Silicon Labs offers an advanced 8-bit microcontroller studio, available at no charge to developers. These tools unlock the power and flexibility of the 8-bit microcontroller family. These tools help develop, download, and debug firmware to the CP24xx/8051/EFM8 8-bit MCU devices.
COMPATIBLE BOARDS
Programming Adapter Add-Ons
Choose the appropriate Programming Adapter for your part number. Refer to the ToolStick Base Adapter User Guide for more information. To develop with a different MCU, designers need the ToolStick Base Adapter.
Programming Adapter
The Programming Adapter provides the appropriate mechanical socket to program a blank device. The Programming Adapter plugs into the Base Adapter.
Automotive and Industrial MCUs
Capacitive Touch Sense MCUs
Low Power MCUs
Small Form Factor MCUs
USB MCUs
C8051F30x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F300/01/02/03/04/05-GM |  ToolStick300PP
|
| C8051F300/01/02/03/04/05-GS | ToolStick300SPP
|
C8051F31x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F310/12/14 | ToolStick310PP
|
| C8051F311/13/15 | ToolStick311PP
|
| C8051F316/17 | ToolStick316PP
|
C8051F32x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F320 | ToolStick320PP
|
| C8051F321 | ToolStick321PP
|
| C8051F326 | ToolStick326PP
|
| C8051F327 | ToolStick321PP
|
C8051F33x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F330/31/32/33/34/35 | ToolStick330PP
|
| C8051F330-GP | ToolStick330DPP
|
| C8051F336/37 | ToolStick330PP
|
| C8051F338/39 | ToolStick316PP
|
C8051F34x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F340/41/44/45/48-GQ | ToolStick340PP
|
| C8051F342/43/46/47/49/4A/4B-GQ | ToolStick320PP
|
| C8051F342/43/46/47/49/4A/4B-GM | ToolStick342MPP
|
C8051F36x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F360/63 | ToolStick360PP
|
| C8051F361/64/66/68 | ToolStick310PP
|
| C8051F362/65/67/69 | ToolStick311PP
|
C8051F37x/39x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F370/71/74/75 C8051F390/91/94/95 |
ToolStick316PP
|
| C8051F392/94/98/99 | ToolStick330PP
|
C8051F38x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F380/82/84/86-GQ | ToolStick340PP
|
| C8051F381/83/85/87-GQ | ToolStick320PP
|
| C8051F381/83/85/87-GM | ToolStick342MPP
|
C8051F41x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F410/12 | ToolStick410PP
|
| C8051F411/13 | ToolStick411PP
|
C8051F50x/51x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F500/01/04/05-IM | ToolStick500MPP
|
| C8051F500/01/04/05-IQ | ToolStick500QPP
|
| C8051F502/03/06/07-IM | ToolStick502MPP
|
| C8051F502/03/06/07-IQ | ToolStick502QPP
|
| C8051F508/09/10/11 | ToolStick588PP
|
C8051F53xA
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F530A/31A/33A/34A/36A/37A-IM | ToolStick530MPP
|
| C8051F530A/31A/33A/34A/36A/37A-IT | ToolStick530TPP
|
C8051F54x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F540/41/44/45-IM | ToolStick502MPP
|
| C8051F540/41/44/45-IQ | ToolStick502QPP
|
| C8051F542/43/46/47-IM | ToolStick542PP
|
C8051F55x/56x/57x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F550/51/52/53/54/55/56/57-IM | ToolStick542PP
|
| C8051F560/61/62/63/64/65/66/67-IM | ToolStick502MPP
|
| C8051F560/61/62/63/64/65/66/67-IQ | ToolStick502QPP
|
| C8051F568/69/70/71/72/73/74/75-IM | ToolStick588PP
|
C8051F58x/59x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F580/01/04/05-IM | ToolStick500MPP
|
| C8051F580/01/04/05-IQ | ToolStick500QPP
|
| C8051F582/83/86/87-IM | ToolStick502MPP
|
| C8051F582/83/86/87-IQ | ToolStick502QPP
|
| C8051F588/90/91 | ToolStick588PP
|
C8051F70x/71x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F700/1/2/3/8/9/10/11-GQ | ToolStick700QPP
|
| C8051F705/6/7/12/13/14/15-GQ | ToolStick704QPP
|
| C8051F705/6/7/12/13/14/15-GM | ToolStick704MPP
|
| C8051F716-GM | ToolStick716MPP
|
| C8051F717-GM | ToolStick717MPP
|
C8051F80x/81x/F82x/F83x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F800/01/02/06/07/08/12/13/14/18/19/20-GU | ToolStick800QPP
|
| C8051F800/01/02/06/07/08/12/13/14/18/19/20-GM | ToolStick330PP
|
| C8051F803/04/05/09/10/11/15/16/17/21/22/23/24/25/26/27/28/29/30/31/32/33/34/35-GS | ToolStick800SPP
|
C8051F85x/86x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F850/51/52/53/54/55-GU | TOOLSTICK800QPP
|
| C8051F850/51/52/53/54/55-GM | TOOLSTICK990MPP
|
| C8051F860/61/62/63/64/65-GS | TOOLSTICK800SPP
|
C8051F90x/91x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F901/02/11/12-GM | ToolStick931PP
|
| C8051F901/02/11/12-GU | ToolStick912UPP
|
C8051F92x/93x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F920/30-GM | ToolStick930MPP
|
| C8051F920/30-GQ | ToolStick930QPP
|
| C8051F921/31-GM | ToolStick931PP
|
C8051F96x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F960/62/64/66/68-GM | ToolStick960MPP
|
| C8051F961/63/65/67/69-GM | ToolStick961MPP
|
C8051F97x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F970/73-A-GM | ToolStick970MPP
|
| C8051F971/74-A-GM | ToolStick971MPP
|
| C8051F972/75-A-GM | ToolStick972MPP
|
C8051F98x/99x
| Part Number | ToolStick Programming Adapter ($69) |
|---|---|
| C8051F980/81/82/83/85/90/91-GM | ToolStick990MPP
|
| C8051F986/87/88/89/96/97-GM | ToolStick931PP
|
| C8051F986/87/88/89/96/97-GU | ToolStick912UPP
|
