AMW0x7 Wireless Xpress Modules

Wi-Fi Xpress provides a simple way to connect products to cloud and enable new features including remote access, real-time product health and usage analytics.

Silicon to cloud
Wi-Fi to Serial Bridge

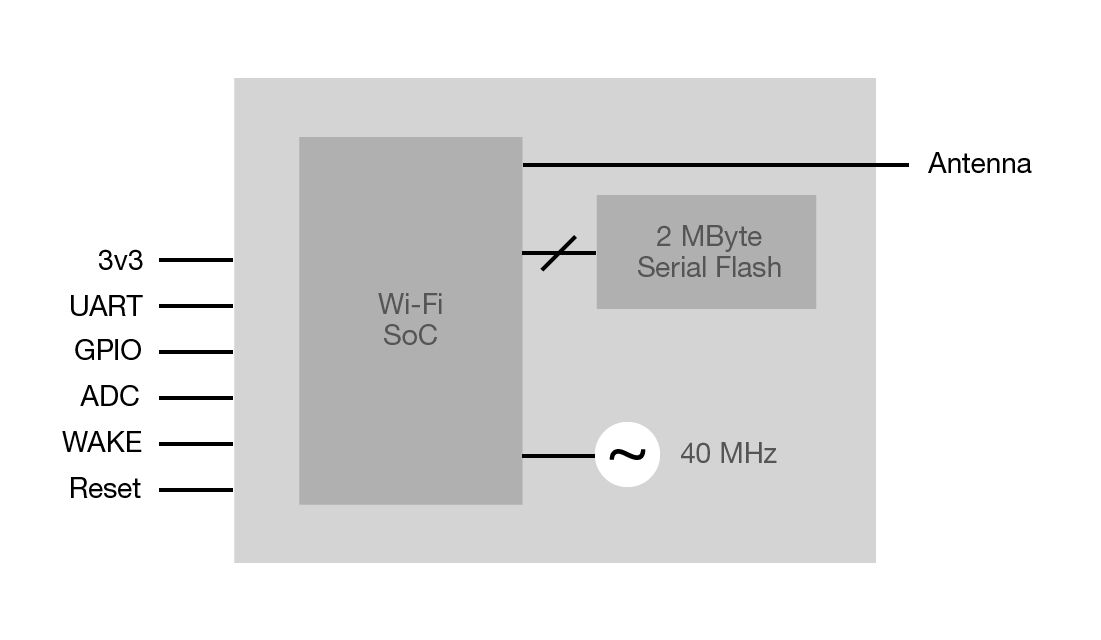

AMW0x7 Common Specs

  • Self-contained ultra-low power Wi-Fi module with secure TCP network stack
  • Integrated SPI-serial flash for software upgrades and user accessible read/write file system
  • Single band 2.4GHz IEEE 802.11b/g/n 1x1 Wi-Fi transceiver
  • Includes support for all Wi-Fi security modes in-cluding Open, WEP, WPA, and WPA2-PSK
  • 32-bit processor operating up to 80MHz core frequency
  • Wake-up: Wake pin for ultra-low power operation
  • Interfaces (Some interfaces share module pins):
    • UART: 1 x 4-wire, 1 x TX only up to 4.5 Mbit/s
    • GPIO: Up to 16 GPIOs (overlaid with peripherals)
    • A/D converter: 1 x 10-bit resolution
    • PWM: Up to 4 PWM outputs
  • Device Management Service:
    • Cloud Managed Reliable Over The Air Software Updates
    • Cloud Connector to AWS, Azure, and major cloud services
    • Dashboard for device activity and software release status


Find the Right AMW0x7 Module Select Columns
Select Columns
Part Number Output Power (dBm) Interfaces Antenna Package Size (mm)
